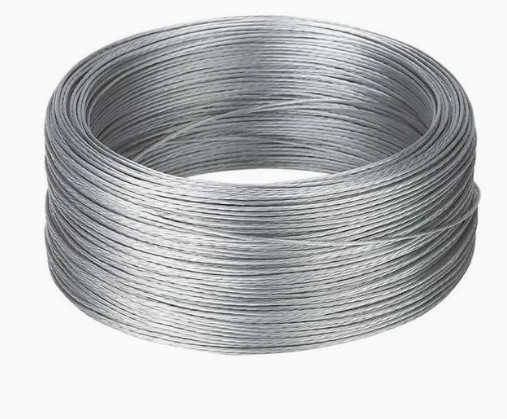

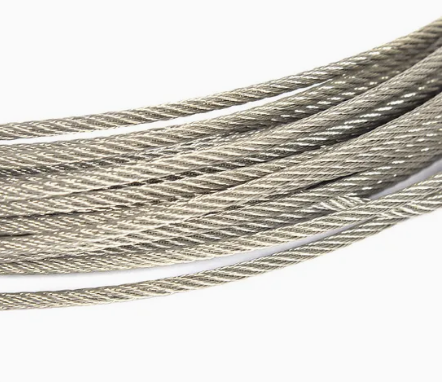

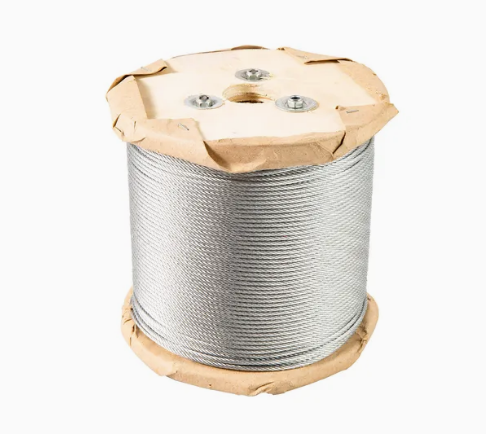

GALVANIZED STEEL WIRE ROPE 6X7+FC
Raw Material :High carbon Steel
Surface:Galvanized
Construction :6x7+FC
Dia:8 mm
Length：1000M

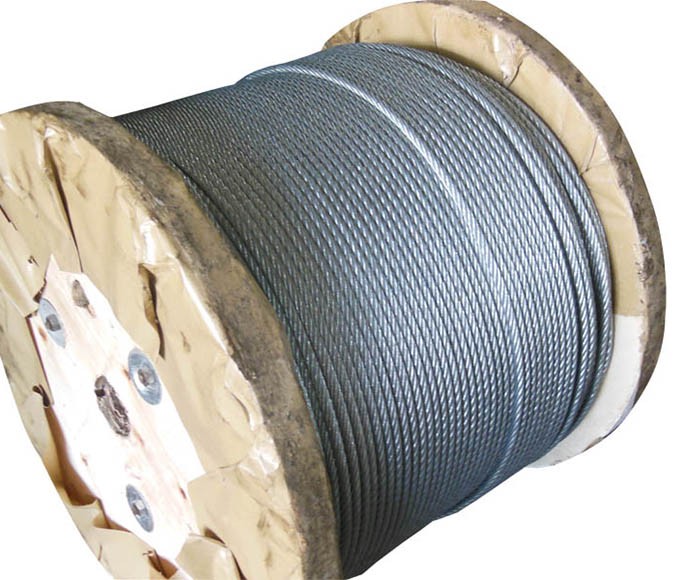

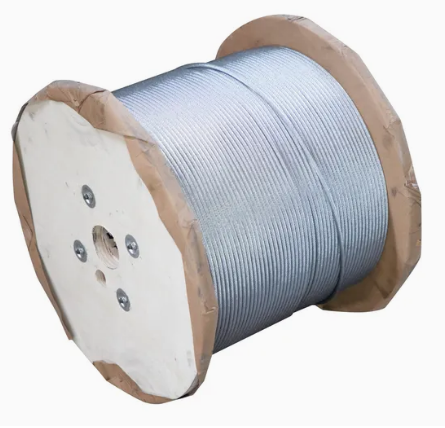

Package :Wooden reel
Origin :China
Specification-6×7+FC Galvanized Wire Rope
| Nominal Dia. (mm) | Approx. Weight (kg/100m) | Approx. MBS(KN) | ||||
| Nominal Tensile Strength(Mpa) | ||||||
| 1570 | 1770 | |||||
| FC | Metal Core | FC | Metal Core | FC | Metal Core | |
| 6mm | 12.6 | 13.9 | 18.8 | 20.3 | 21.2 | 22.9 |
| 7mm | 17.2 | 19 | 25.5 | 27.6 | 28.8 | 31.1 |
| 8mm | 22.5 | 24.8 | 33.4 | 36.1 | 37.6 | 40.7 |
| 9mm | 28.4 | 31.3 | 42.2 | 45.7 | 47.6 | 51.5 |
| 10mm | 35.1 | 38.7 | 52.1 | 56.4 | 58.8 | 63.5 |
| 11mm | 42.5 | 468 | 63.1 | 68.2 | 74.1 | 76.9 |
| 12mm | 50.5 | 55.7 | 75.1 | 81.2 | 84.6 | 91.5 |
| 13mm | 59.3 | 65.4 | 88.1 | 95.3 | 99.3 | 107 |
| 14mm | 68.8 | 75.9 | 102 | 110 | 115 | 125 |
| 16mm | 89.9 | 99.1 | 133 | 144 | 150 | 163 |
| 18mm | 114 | 125 | 169 | 183 | 190 | 206 |
1) Loading port: Nantong,China/SHANGHAI CHINA
2) Delivery term: FOB, CFR, CIF
3) Delivery lead time: 30 days after received deposit.
4) Payment term:30% by T/T as deposit., balance will be paid by T/T,
5) Quality assurance: Mill Test Certificate is supplied with shipment, third Party Inspection is acceptable.
