35W*K7 Compacted Non-Rotating Galvanized and Ungalvanized Forged Hoist Steel Cable Wire Rope

35W*K7 Compacted Non-Rotating Galvanized and Ungalvanized Forged Hoist Steel Cable Wire Rope

Raw Material :High carbon Steel
Surface:Galvanized /Ungalvanized
Construction :35WXK7
Dia:20mm
Length：1000M

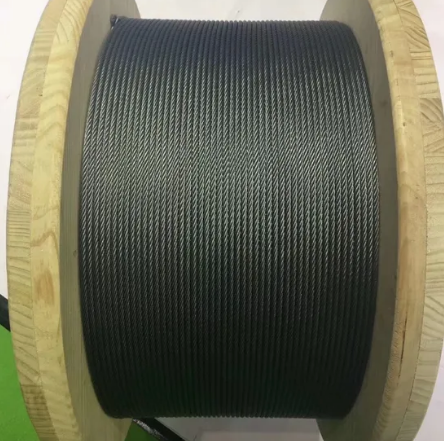

Package :steel reel
Origin :China

Construction		35W*K7
Construction		35W*K7
Nominal Diameter	Approximate Weight	Mini.Breaking Load Corresponding To Rope Grade Of
Nominal Diameter	Approximate Weight	1570	1770	1960	2160
MM	KG/100M	KN	KN	KN	KN
12	73.4	93.8	106	117	129
14	100	128	144	159	176
16	131	167	188	208	230
18	165	211	238	264	290
20	204	261	294	325	359
22	247	315	356	394	434
24	294	375	423	469	516
26	345	440	497	550	606
28	400	511	576	638	703
30	459	586	661	732	807
32	522	667	752	833	918
34	590	753	849	940	1040
36	661	844	952	1050	1160
38	736	941	1060	1170	1290
40	816	1040	1180	1300	1430
42	900	1150	1300	1430	1580
44	987	1260	1420	1570	1740
46	1080	1380	1550	1720	1900
48	1180	1500	1690	1870	2070
50	1280	1630	1840	2030	2240
52	1380	1760	1990	2200	-
54	1490	1900	2140	2370	-
56	1600	2040	2300	-	-
58	1720	2190	2470	-	-
60	1840	2350	2640	-	-

35Wx7 means the outer l6, not rotating lifting rope, made up of 35 stocks of non-rotating wire rope. Suitable for the application of large hoisting height.

Steel wire rope has the very good softness,

Particularly suitable for occasions with complex roller system.

Advantage: soft is its biggest characteristic, its ability to resist rotation of a much higher than the old steel structure, and the life is long.

High strength work, high safety and reliability requirements of applications, such as offshore oil platforms, ship cranes, mobile cranes. Car up

Heavy machine Lord or vice hanging, steel workshop crane hoisting rope

1) Loading port: Nantong,China/SHANGHAI CHINA

2) Delivery term: FOB, CFR, CIF

3) Delivery lead time: 30 days after received deposit.

4) Payment term:30% by T/T as deposit., balance will be paid by T/T,

5) Quality assurance: Mill Test Certificate is supplied with shipment, third Party Inspection is acceptable.
