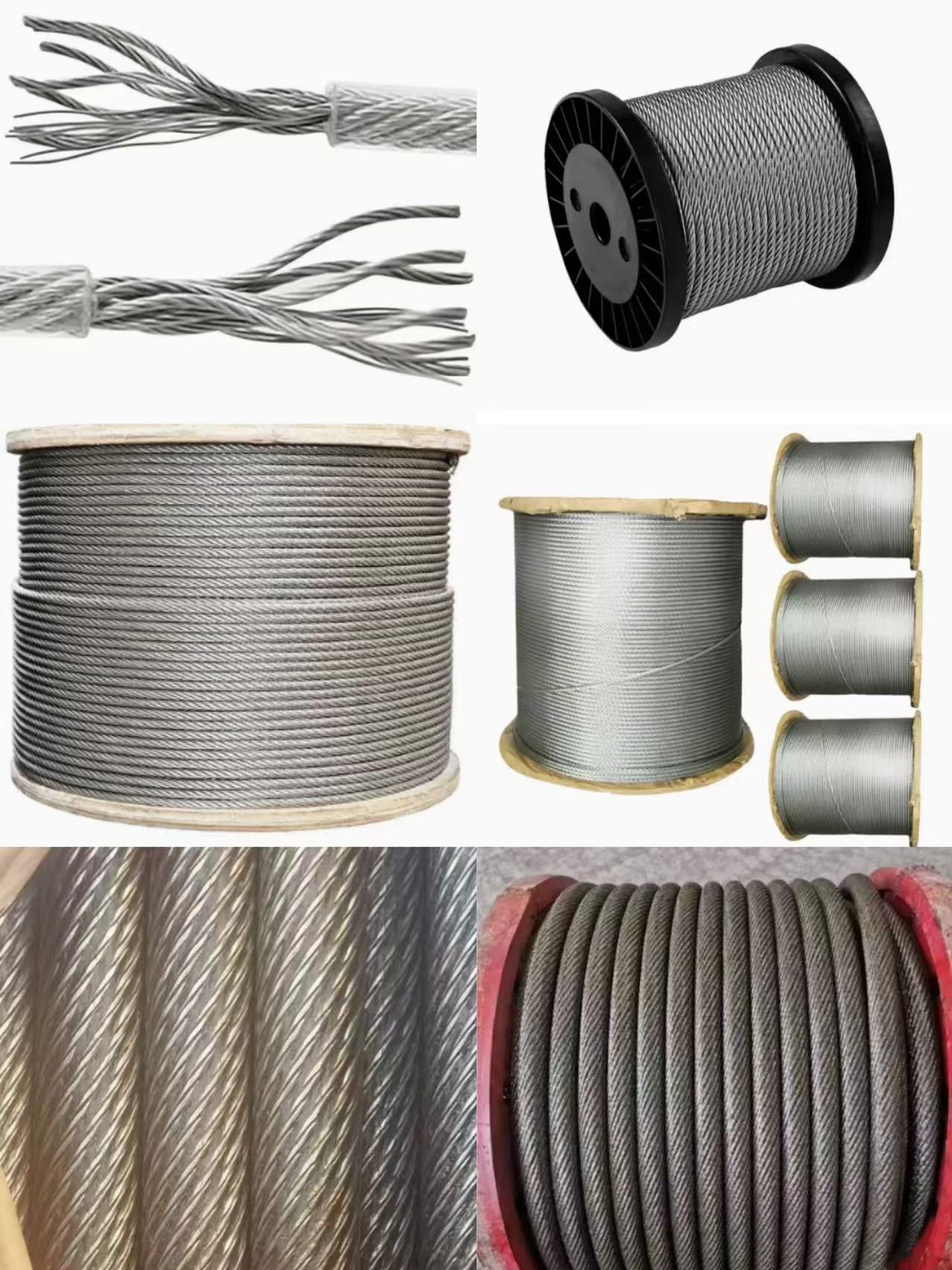

GALVANIZED STEEL WIRE ROPE WITH PVC COATED 6X12+7FC

WIRE ROPE 6X12+7FC, CONSTRUCTION:0+12

Nominal Diameter		Approx.Weight		Nominal Tensile Strength of Rope(MPa)
				1470	1570	1670	1770	1870
d	Allowed Tolerance	NF	SF	Minimum Breaking Load of Rope
mm	%	kg/100m		KN
3 4 5 6 7 8 9 10 11 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 42 44 46	十7 0	2.26 4.02 6.28 9.04 12.30 16.10 20.30 25.10 30.40 36.10 49.20 64.30 81.30 100.00 127.00 145.00 170.00 197.00 226.00 257.00 290.00 325.00 362.00 402.00 443.00 486.00 531.00	2.08 3.70 5.78 8.32 11.30 14.80 18.70 23.10 28.00 33.30 45.30 59.10 74.80 92.40 112.00 133.00 156.00 181.00 208.00 237.00 267.00 299.00 334.00 370.00 407.00 447.00 489.00	2.77 4.92 7.68 11.10 15.10 19.70 24.90 30.70 37.20 44.20 60.20 78.70 99.50 123.00 149.00 177.00 208.00 241.00 277.00 315.00 355.00 398.00 444.00 492.00 542.00 595.00 650.00	2.95 5.25 8.20 11.80 16.10 21.00 26.60 32.80 39.70 47.30 64.30 84.00 106.00 131.00 159.00 189.00 222.00 257.00 295.00 336.00 379.00 425.00 474.00 525.00 579.00 635.00 694.00	3.14 5.58 8.73 12.60 17.10 22.30 28.30 34.90 42.20 50.30 68.40 89.40 113.00 140.00 169.00 201.00 236.00 274.00 314.00 357.00 403.00 452.00 504.00 558.00 616.00 676.00 739.00	3.33 5.92 9.25 13.30 18.10 23.70 30.00 37.00 44.80 53.30 72.50 94.70 120.00 148.00 179.00 213.00 250.00 290.00 333.00 379.00 428.00 479.00 534.00 592.00 653.00 716.00 783.00	3.52 6.25 9.77 14.10 19.20 25.00 31.70 39.10 47.30 56.30 76.60 100.00 127.00 156.00 189.00 225.00 264.00 306.00 352.00 400.00 452.00 507.00 564.00 625.00 689.00 757.00 827.00
