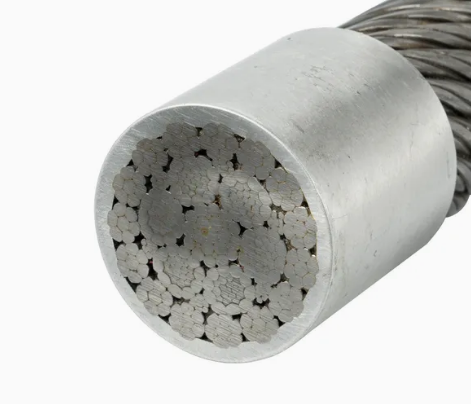

35W*K7 Compacted Non-Rotating Galvanized and Ungalvanized Forged Hoist Steel Cable Wire Rope
Raw Material :High carbon Steel
Surface:Galvanized /Ungalvanized
Construction :35WXK7
Dia:20mm
Length：1000M

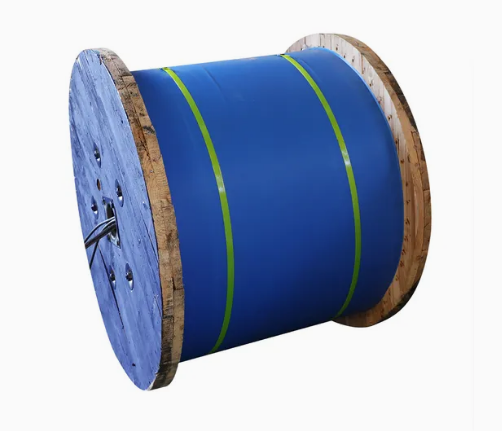

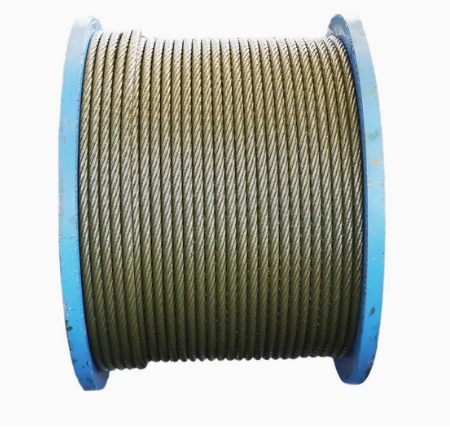

Package :steel reel
Origin :China
| Construction | 35W*K7 | ||||
| Nominal Diameter | Approximate Weight | Mini.Breaking Load Corresponding To Rope Grade Of | |||
| 1570 | 1770 | 1960 | 2160 | ||
| MM | KG/100M | KN | KN | KN | KN |
| 12 | 73.4 | 93.8 | 106 | 117 | 129 |
| 14 | 100 | 128 | 144 | 159 | 176 |
| 16 | 131 | 167 | 188 | 208 | 230 |
| 18 | 165 | 211 | 238 | 264 | 290 |
| 20 | 204 | 261 | 294 | 325 | 359 |
| 22 | 247 | 315 | 356 | 394 | 434 |
| 24 | 294 | 375 | 423 | 469 | 516 |
| 26 | 345 | 440 | 497 | 550 | 606 |
| 28 | 400 | 511 | 576 | 638 | 703 |
| 30 | 459 | 586 | 661 | 732 | 807 |
| 32 | 522 | 667 | 752 | 833 | 918 |
| 34 | 590 | 753 | 849 | 940 | 1040 |
| 36 | 661 | 844 | 952 | 1050 | 1160 |
| 38 | 736 | 941 | 1060 | 1170 | 1290 |
| 40 | 816 | 1040 | 1180 | 1300 | 1430 |
| 42 | 900 | 1150 | 1300 | 1430 | 1580 |
| 44 | 987 | 1260 | 1420 | 1570 | 1740 |
| 46 | 1080 | 1380 | 1550 | 1720 | 1900 |
| 48 | 1180 | 1500 | 1690 | 1870 | 2070 |
| 50 | 1280 | 1630 | 1840 | 2030 | 2240 |
| 52 | 1380 | 1760 | 1990 | 2200 | - |
| 54 | 1490 | 1900 | 2140 | 2370 | - |
| 56 | 1600 | 2040 | 2300 | - | - |
| 58 | 1720 | 2190 | 2470 | - | - |
| 60 | 1840 | 2350 | 2640 | - | - |
1) Loading port: Nantong,China/SHANGHAI CHINA
2) Delivery term: FOB, CFR, CIF
3) Delivery lead time: 30 days after received deposit.
4) Payment term:30% by T/T as deposit., balance will be paid by T/T,
5) Quality assurance: Mill Test Certificate is supplied with shipment, third Party Inspection is acceptable.
