Nylon Coated Rope 316 Stainless Steel Wire Rope 7X7 Diameter 1.8 mm

Nylon Coated Rope 316 Stainless Steel Wire Rope 7X7 Diameter 1.8 mm

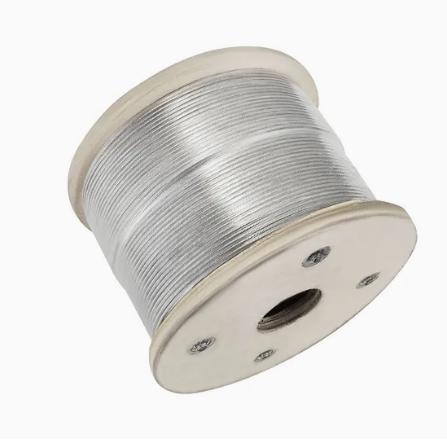

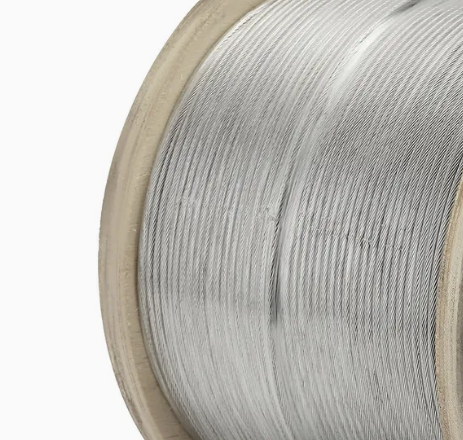

Nylon coated stainless steel wire rope
Material: 304 /316
Construction: 7x7
Standard: AISI, ASTM, GB, JIS, DIN, EN
Diameter: 1.5mm/2mm ,1.8mm/2.5mm,2mm/3mm,2.3mm/3mm,2.5mm/3mm
Tensile strength: 1570N/mm2

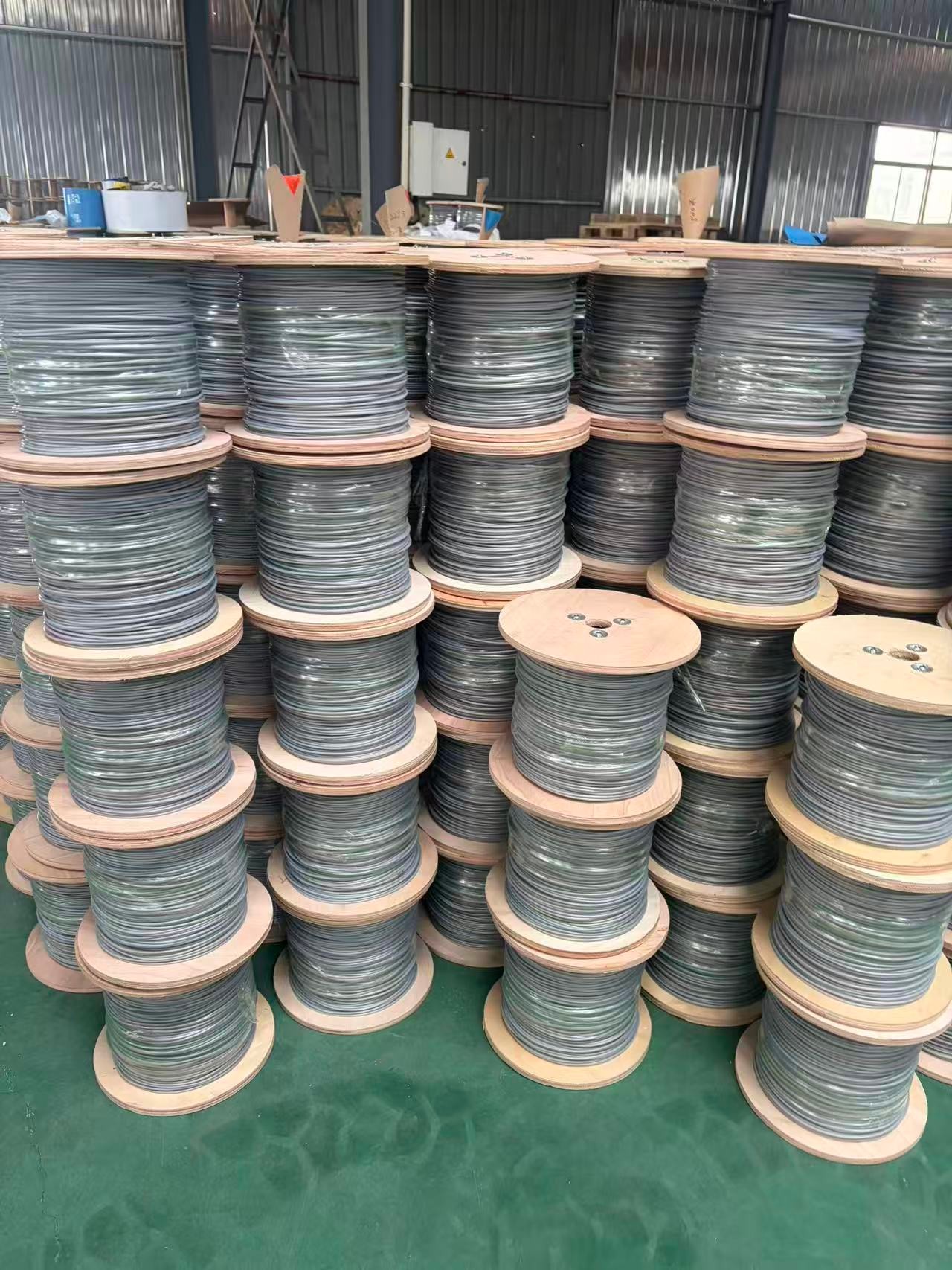

Packaging: 500m/reel ,1000m/reel

Product Description

Nylon coated stainless steel wire rope
Material: 304 /316
Construction: 7x7
Standard: AISI, ASTM, GB, JIS, DIN, EN
Diameter: 1.5mm/2mm ,1.8mm/2.5mm,2mm/3mm,2.3mm/3mm,2.5mm/3mm

Tensile strength: 1570N/mm2
Packaging: 500m/reel ,1000m/reel, 2000m/reel

7x7 Stainless Steel Wire Rope Specification:

Structure	Rope diameter mm	kg/1000m	Minimum Breaking force N	Minimum Breaking force kg
7x7	0.3	0.36	53.9	5.5
	0.36	0.5184	83.3	8.5
	0.45	0.81	142.1	14.5
	0.54	1.1664	205.8	21
	0.6	1.44	215.6	22
	0.72	2.0736	362.6	37
	0.8	2.56	460.6	47
	0.9	3.24	539	55
	1	4	637	65
	1.2	5.76	882	90
	1.6	10.24	2100	214
	1.8	12.96	2254	230
	2	16	2940	300
	2.4	23.04	4100	418
	2.5	25	4400	449
	3	36	6370	650
	3.5	49	7640	780
	4	64	9510	970
	5	100	14700	1500
	6	144	18600	1898

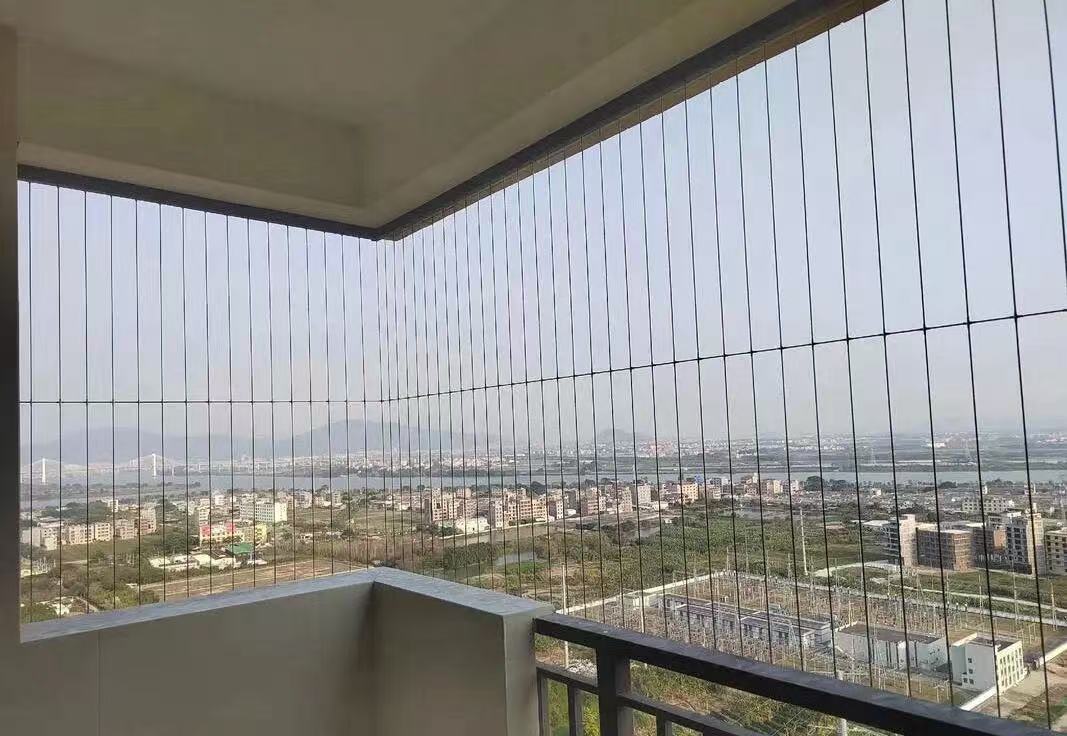

Why 7×7 Nylon Coated Steel Cable is Great for Invisible Grilles?

7×7 stainless steel cable with nylon coating is the most popular choice for invisible safety grilles.

• The 7×7 structure is strong, flexible and easy to install. It holds great tension and keeps the net straight.

• Nylon coating makes it almost invisible, protects the wire from rust, and is safe to touch.

• It stands up well to hot, humid and rainy weather, which is perfect for many countries.

• Compared with PVC coating, it lasts longer and does not turn yellow easily.

• It provides good protection for children and prevents falling, while keeping good light and view.

That’s why demand of this rope is growing so fast.

What is stainless steel wire rope?
Stainless steel wire rope is a type of cable made from stainless steel wires twisted together to form a strong and flexible rope. It is commonly used in various industries for lifting, rigging, and other applications where high strength and corrosion resistance are required.

What are the advantages of using stainless steel wire rope?
Stainless steel wire rope offers several advantages, including high strength, excellent corrosion resistance, durability, and versatility. It can withstand harsh environmental conditions and is suitable for use in marine, industrial, and outdoor applications.
