18X7 - Rotation Resistant Stainless Steel Wire Rope
Dia:3mm-30mm
Length:500m/1000m

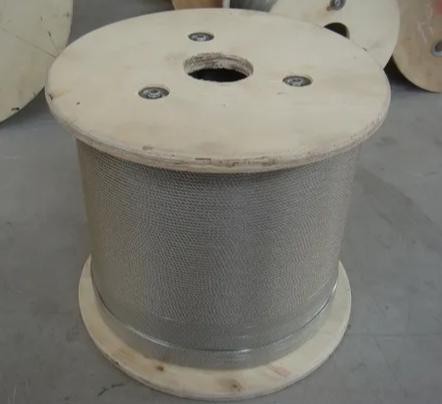

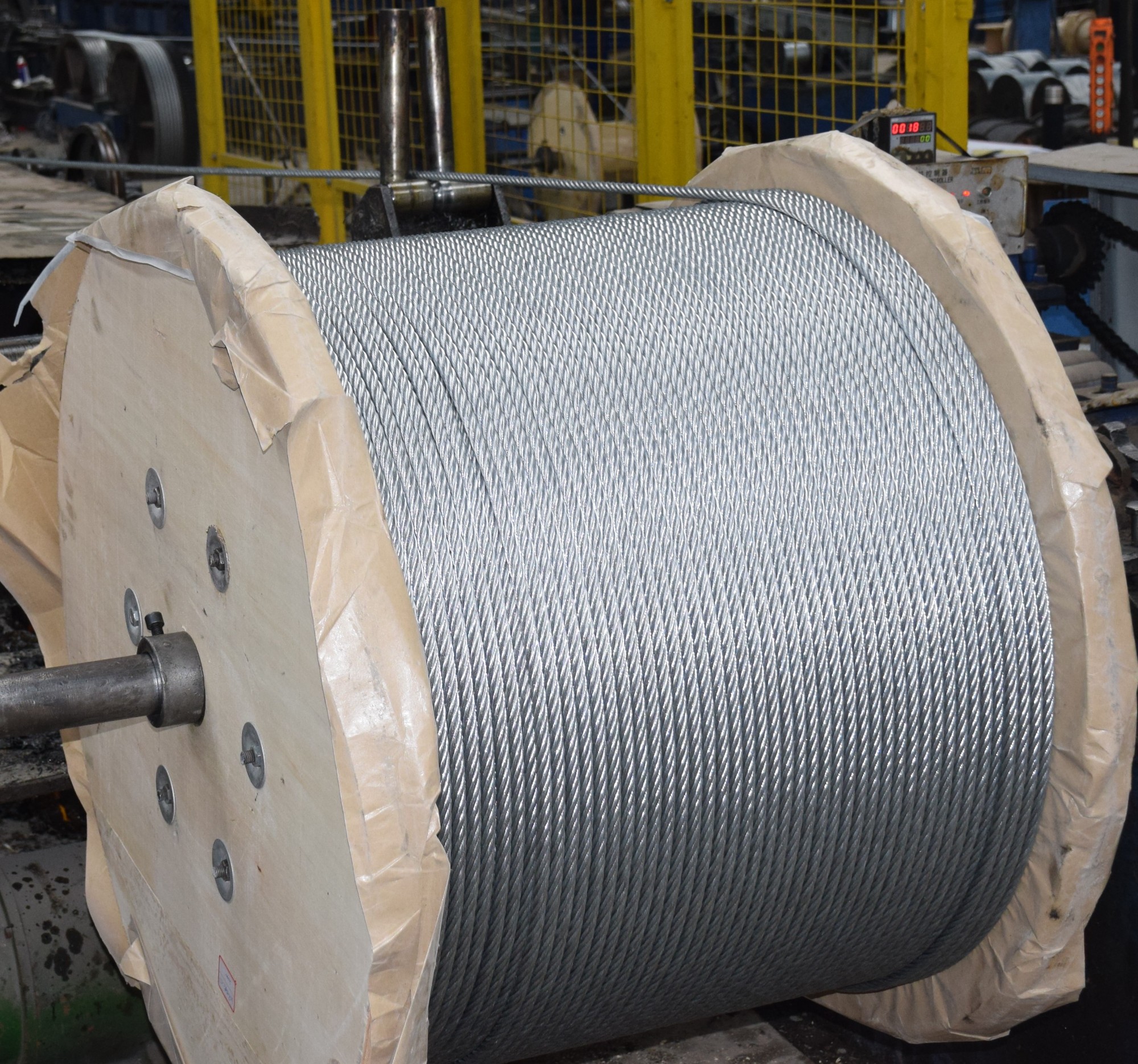

Package:wooden reel
18X7 AISI316 stainless steel wire rope is a non-rotating construction used where low rotation is required. Popular applications include davit and crane rope applications. Available in diameters from 3.0mm to 26mm.
Specification
Material | AISI 304 ,316,316L |
Construction | 18x7 |
Diameter | 3.0mm-26mm |
Strength | 1570N/mm2, 1770 N/mm2, 1960 N/mm2 |
Diameter | Approx Weight | Min Breaking Load (KN) | ||
mm | Kg/100m | 1570Mpa | 1770 Mpa | 1960 Mpa |
3.0 | 3.7 | 5.2 | 5.8 | |
4.0 | 6.6 | 9.3 | 10.3 | |
5.0 | 10.4 | 12.9 | 14.5 | 16.1 |
6.0 | 14.9 | 18.6 | 20.9 | 23.2 |
8.0 | 26.5 | 33.0 | 37.2 | 41.2 |
10.0 | 41.4 | 51.6 | 58.1 | 64.4 |
12.0 | 59.6 | 74.3 | 83.7 | |
13.0 | 70.0 | 87.1 | 98.2 | |
14.0 | 81.2 | 101 | ||
16.0 | 106.0 | 132 | ||
18.0 | 134 | 167 | ||
20.0 | 166 | 206 | ||
22.0 | 200 | 250 | ||
24.0 | 238 | 297 | ||
26.0 | 280 | 349 | ||
Main Applications:
Ideal for crane lifting, elevators, mining machinery, marine & offshore rigging, overhead cranes, and precision hoisting where anti-rotation, stability, and corrosion resistance are critical.
Key Advantages:
• Anti-rotation & stable: 18×7 multi-strand construction resists twisting under load.
• High strength & flexibility: Good balance of tensile strength and bendability.
• Stainless steel (304/316): Excellent corrosion resistance (water, humidity, chemicals).
• Wear & fatigue resistant: Long service life in heavy-duty cycles.
• Smooth, low-maintenance, durable.
