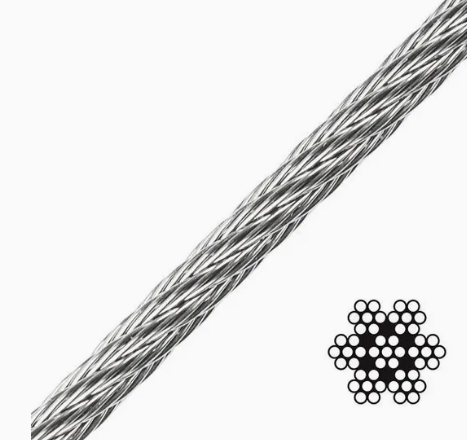

UNGALVANIZED WIRE ROPE 35W*7 FOR CRANE

Raw Material :High carbon Steel
Surface:Galvanized /Ungalvanized
Construction :35WX7

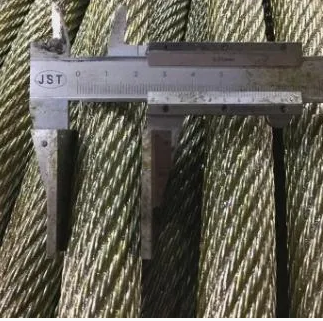

Dia: 18 mm
Length：1000M

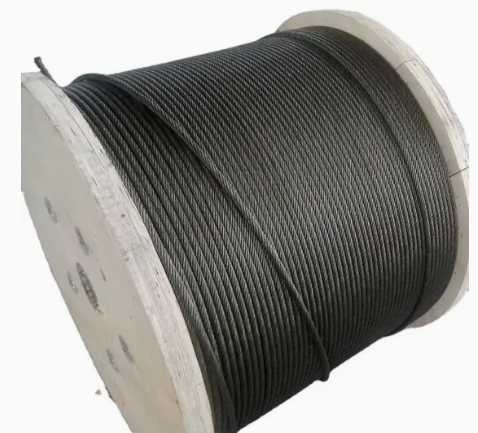

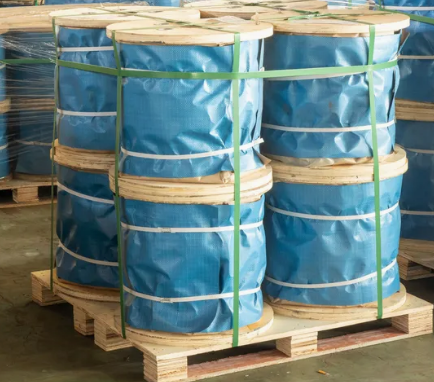

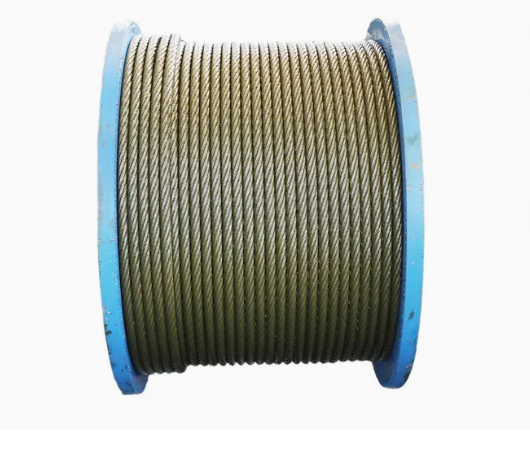

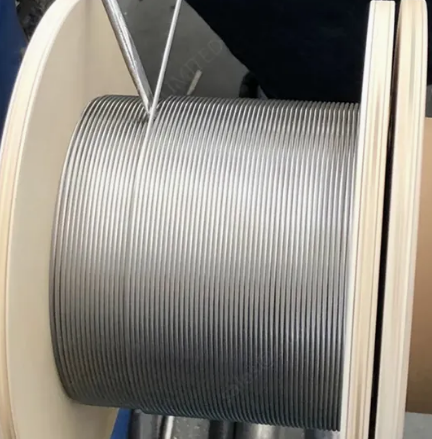

Package :Wooden reel
Origin :China

WIRE ROPE 35WX7, CONSTRUCTION: 1+6

Nominal Diameter			Nominal Tensile Strength of Rope(MPa)
		Approx.Weight	1470	1570	1670	1770	1870	1960
d	Allowed Tolerance		Minimum Breaking Load of Rope
mm	%	kg/100m	KN
10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 42 44	十7 0	46.00 66.20 90.20 118.00 149.00 184.00 223.00 265.00 311.00 361.00 414.00 471.00 532.00 596.00 664.00 736.00 811.00 891.00	52.90 76.20 104.00 135.00 171.00 212.00 256.00 305.00 358.00 415.00 476.00 542.00 672.00 686.00 764.00 847.00 934.00 1020.00	56.50 81.40 111.00 145.00 183.00 226.00 274.00 326.00 382.00 443.00 509.00 579.00 653.00 732.00 816.00 904.00 997.00 1090.00	60.10 86.60 118.00 154.00 195.00 240.00 291.00 346.00 406.00 477.00 541.00 616.00 695.00 779.00 868.00 962.00 1060.00 1160.00	63.70 91.80 125.00 163.00 206.00 255.00 308.00 367.00 431.00 500.00 573.00 652.00 737.00 826.00 920.00 1020.00 1120.00 1230.00	67.30 96.90 132.00 172.00 218.00 269.00 326.00 388.00 455.00 528.00 606.00 689.00 778.00 872.00 972.00 1080.00 1190.00 1300.00	70.60 102.00 138.00 181.00 229.00 282.00 342.00 406.00 477.00 553.00 635.00 723.00 816.00 914.00 1020.00 1130.00 1240.00 1370.00
