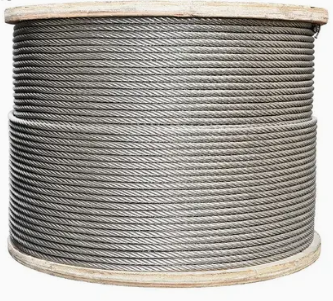

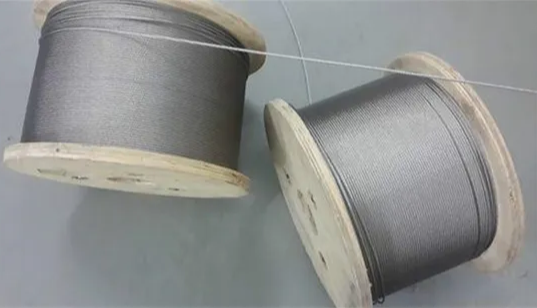

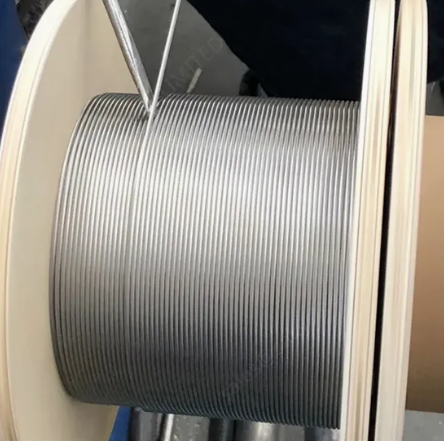

304 7X37 18mm Stainless Steel Wire Rope
Surface:SS 304
Construction :7X37
Dia:18 mm
Length：1000M

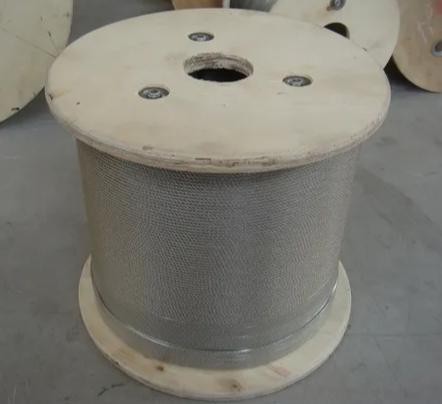

Package :Wooden reel
Origin :China
7x37 Stainless Steel Wire Rope Specification:
| Structure | Norminal diameter mm | Approximate Weight kg/1000m | Min. Breaking Strength N | Min. Breaking Strength kg |
| 7x37 | 10 | 400 | 54000 | 5510 |
| 12 | 576 | 73000 | 7449 | |
| 13 | 676 | 82000 | 8367 | |
| 14 | 784 | 89000 | 9082 | |
| 16 | 1024 | 124000 | 12653 | |
| 18 | 1296 | 157000 | 16020 | |
| 20 | 1600 | 194000 | 19796 | |
| 22 | 1936 | 235000 | 23980 | |
| 24 | 2304 | 280000 | 28571 | |
| 26 | 2704 | 328000 | 33469 | |
| 28 | 3136 | 381000 | 38878 | |
| 30 | 3600 | 437000 | 44592 | |
| 32 | 4096 | 497000 | 50714 | |
| other diameter and structure available | ||||
