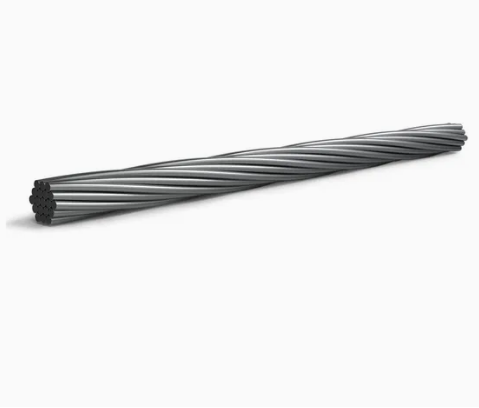

316 1X19 4mm Stainless Steel Wire Rope
Surface:SS316

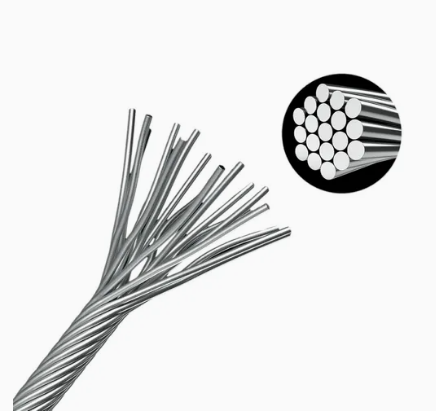

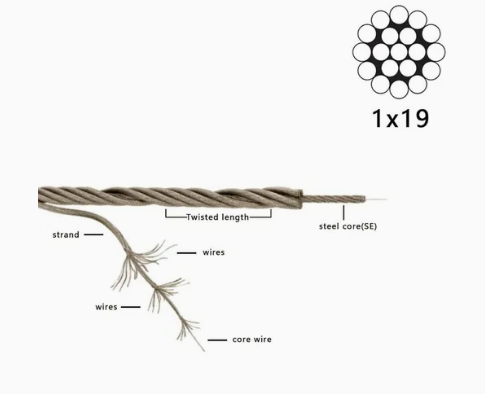

Construction :1X19
Dia:4.0 mm
Length：1000M

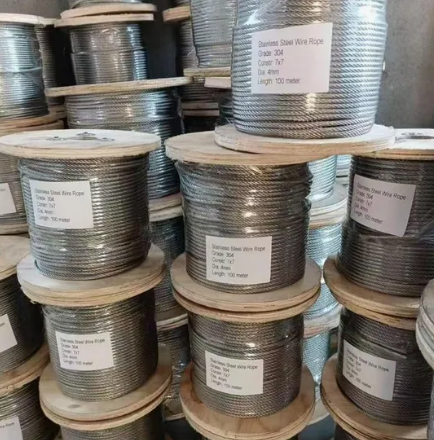

Package :Wooden reel
Origin :China
1x19 Stainless Steel Wire Rope Specification:
| Structure | Rope diameter mm | kg/1000m | Minimum Breaking force N | Minimum Breaking force kg |
| 1x19 | 0.6 | 1.8 | 343 | 35 |
| 0.7 | 2.45 | 470.4 | 48 | |
| 0.8 | 3.2 | 617.4 | 63 | |
| 0.9 | 4.05 | 774.2 | 79 | |
| 1 | 5 | 950.6 | 97 | |
| 1.2 | 7.2 | 1274 | 130 | |
| 1.5 | 11.25 | 2254 | 230 | |
| 1.6 | 12.8 | 2597 | 265 | |
| 1.8 | 16.2 | 3200 | 327 | |
| 2 | 20 | 3822 | 390 | |
| 2.4 | 28.8 | 4800 | 490 | |
| 2.5 | 31.25 | 5586 | 570 | |
| 3 | 45 | 8000 | 816 | |
| 3.5 | 61.25 | 9310 | 950 | |
| 4 | 80 | 12740 | 1300 | |
| 5 | 125 | 18900 | 1929 | |
| 6 | 180 | 26000 | 2653 | |
| 8 | 320 | 45000 | 4592 | |
| 10 | 500 | 72000 | 7347 | |
| 12 | 720 | 101000 | 10306 | |
| other size available | ||||
