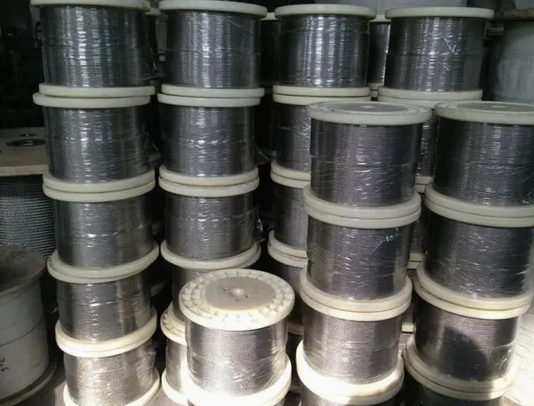

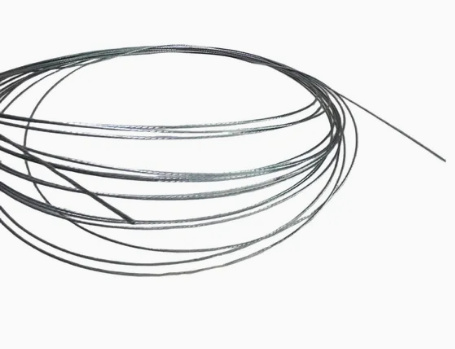

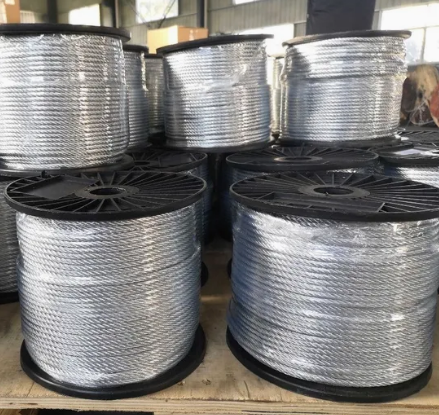

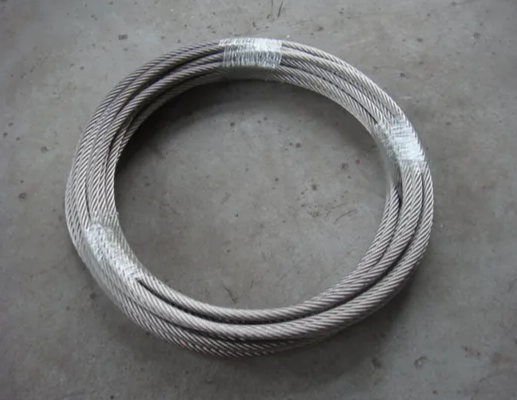

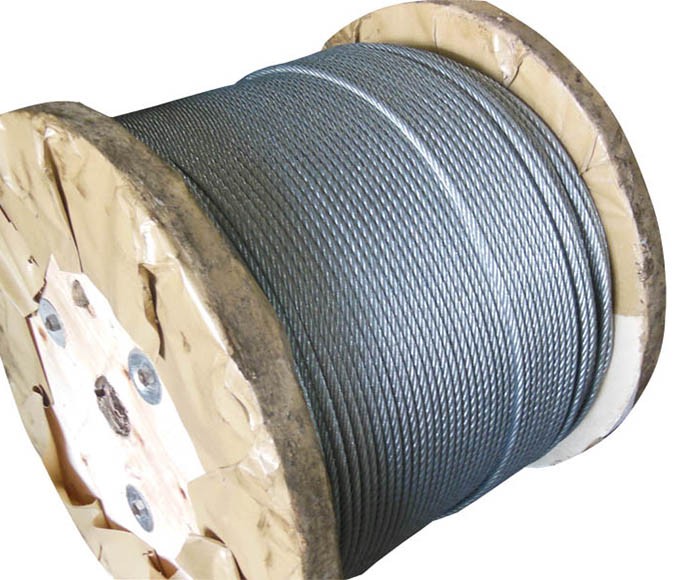

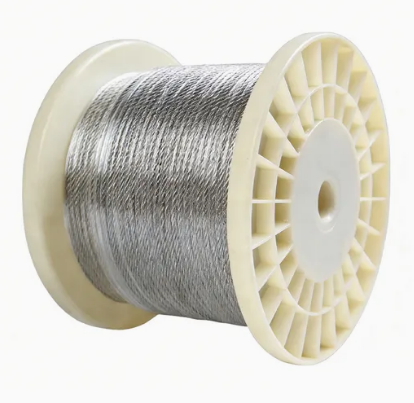

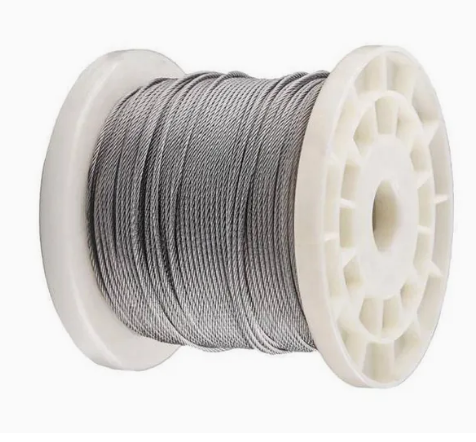

ASTM 304 SS 7X7 1.5mm Stainless Steel Wire Rope

ASTM 304 SS 7X7 1.5mm Stainless Steel Wire Rope

ASTM 304 SS 7X7 1.5mm Stainless Steel Wire Rope
Material: Galvanized,stainless steel
Surface treatment: Bright
Function: Higher T/S ,Higher breaking load , Better fatigue
Usage: Car\motorcycle control,Window Regulator control

CONTURCTION COMPACTED STRAND 7x7
Product Code	Diameter (mm)	Min.Breaking Load (kn)			Weight Kg/100m
Product Code	Diameter (mm)	1570/mm²	1770/mm²	1960/mm²	Weight Kg/100m
SS01(7x7)	1.00	0.520	0.590	0.650	0.36
SS15(7x7)	1.50	1.170	1.330	1.460	0.81
SS20(7x7)	2.00	2.080	2.350	2.600	1.44
SS25(7x7)	2.50	3.260	3.670	4.070	2.25
SS30(7x7)	3.00	4.690	5.290	5.860	3.24
SS40(7x7)	4.00	8.340	9.400	10.400	5.76
SS50(7x7)	5.00	13.030	14.700	16.300	9.00
SS60(7x7)	6.00	18.800	21.200	-	12.96
SS80(7x7)	8.00	33.400	37.600	-	23.04
SS100(7x7)	10.00	52.100	58.800	-	36.00
SS120(7x7)	12.00	75.100	84.600	-	51.84
SS160(7x7)	16.00	133.400	-	-	92.16
SS200(7x7)	20.00	210.000	-	-	144.00

Stainless steel wire rope has many characteristics, such as high temperature resistance, good fatigue resistance, excellent breaking force, long service life, and durability. And it is widely used in high-end fields such as medical treatment, automobile, aviation, aerospace, military industry; coal, petroleum, metallurgy, chemical industry, shipbuilding, bridge, electric power, rubber, tourism, water conservancy, light industry and other industries. We are able to standardize and scale production according to international and foreign advanced standards such as ISO, BS, DIN, JIS, ABS, LR, etc.
1. Stainless steel wire ropes are widely used in digestive tract medical equipment, and synchronously rotating wire ropes have more synchronization performance than conventional wire ropes.
2. It has a wide range of applications in automobile cables, Such as hood cable, throttle cable, shift cable, door lock cable, seat cable, brake cable, flexible shaft cable, sunroof cable, fuel tank cover cable, luggage cover cable, etc. The research and development of stainless steel smooth wire has improved technology and performance in the cable.
3. In the equipment reform of the chemical, fertilizer, chemical fiber and other industries, stainless steel wire ropes are used in the deployment of their updated equipment.
4. Stainless steel welding rod and a large number of stainless steel components, springs, abutting parts, etc., all of which use stainless steel wire rope.

5. Stainless steel wire ropes are also used in the hoisting rings and hangers on electrified locomotives and power lines.
6. Nowadays, a considerable part of nylon mesh in various industries has been replaced by stainless steel wire rope.
7. At the same time, wire ropes are also used in the decoration industry, rigging industry, fishing gear industry, automobile and motorcycle industry and other industries.
