AISI 304 Stainless Steel Cable 7X19
316 7X19 Stainless Steel Cable
En 12385-4 ; GB/T 9944-2015

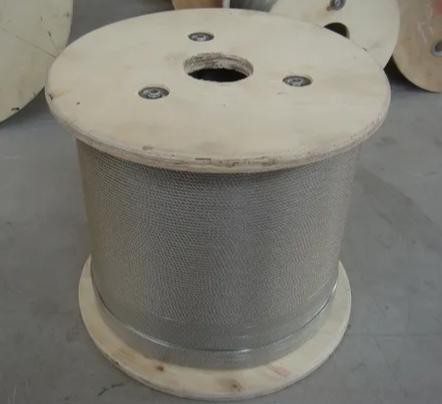

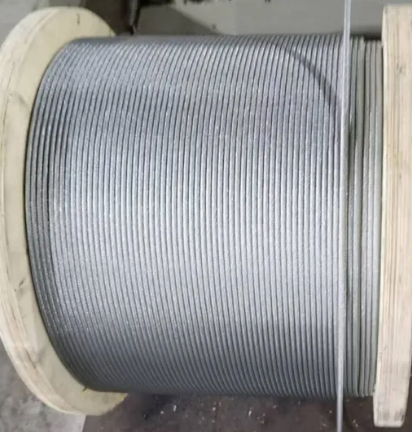

Package:Wooden Reel & Pallet
CONTURCTION COMPACTED STRAND 7x19 | |||||
Product Code | Diameter (mm) | Min.Breaking Load (kn) | Weight Kg/100m | ||
1570/mm² | 1770/mm² | 1960/mm² | |||
SS15(7x19) | 1.50 | 1.090 | 1.220 | 1.350 | 0.81 |
SS20(7x19) | 2.00 | 1.920 | 2.170 | 2.400 | 1.44 |
SS25(7x19) | 2.50 | 3.010 | 3.390 | 3.750 | 2.25 |
SS30(7x19) | 3.00 | 4.340 | 4.890 | 5.420 | 3.24 |
SS40(7x19) | 4.00 | 7.710 | 8.690 | 9.630 | 5.76 |
SS50(7x19) | 5.00 | 12.050 | 13.580 | 15.040 | 9.00 |
SS60(7x19) | 6.00 | 17.400 | 19.600 | 21.700 | 12.96 |
SS80(7x19) | 8.00 | 30.800 | 34.800 | 38.500 | 23.04 |
SS100(7x19) | 10.00 | 48.200 | 54.300 | 60.200 | 36.00 |
SS120(7x19) | 12.00 | 69.400 | 78.200 | - | 51.84 |
SS160(7x19) | 16.00 | 123.400 | 139.100 | - | 92.16 |
SS200(7x19) | 20.00 | 193.000 | - | - | 144.00 |
SS220(7x19) | 22.00 | 232.800 | - | - | 174.24 |
SS240(7x19) | 24.00 | 277.000 | - | - | 207.36 |
We Haotong Metal offer a complete line of stainless steel wire rope cable for marine, industrial and architectural applications.
All of our stainless steel wire cable is made from 316 (1.4401 A4) and 304 (1.4301 A2) stainless steel.

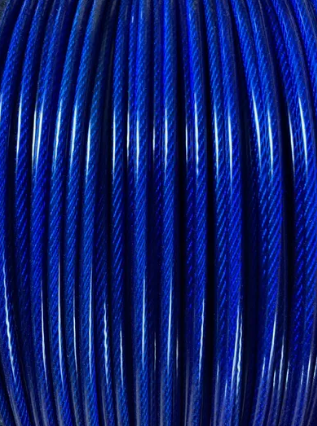

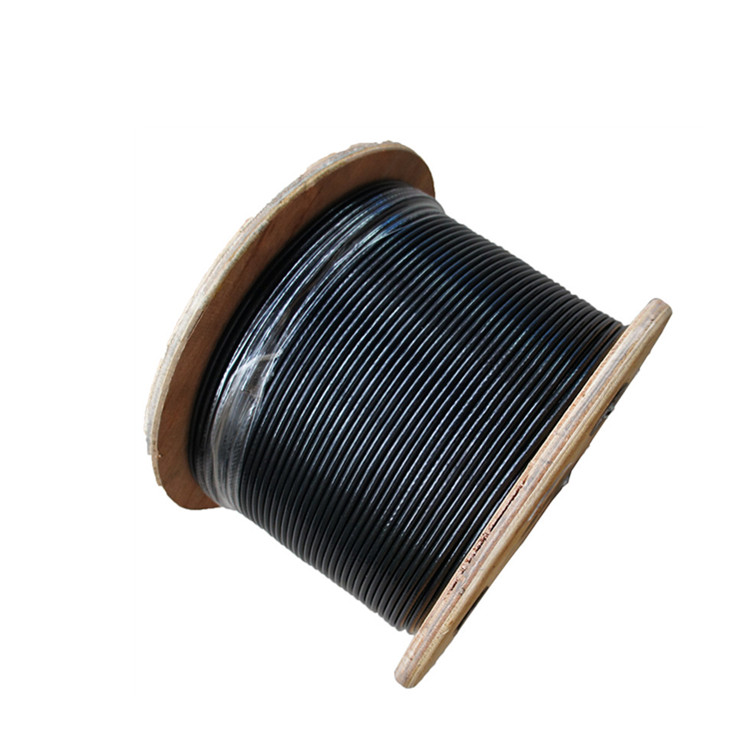

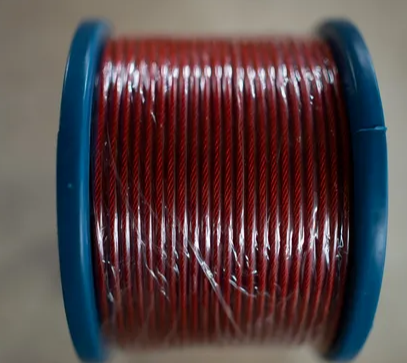

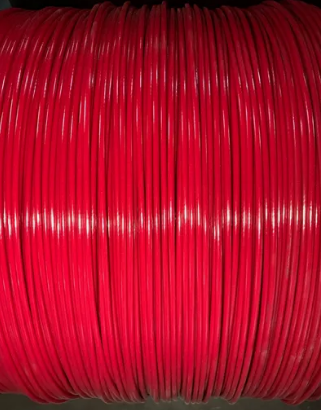

Our wire rope product line also includes both Black Nylon Coated Wire & White Nylon Coated Wire & Clear Nylon Coated Wire.
We also offer a complete line of Wire Rope Accessories including Thimbles, Turnbuckles, Clips, Sleeves, Swage Turnbuckles & Terminals.
Our stainless steel wire rope cable will meet and exceed your expectations.

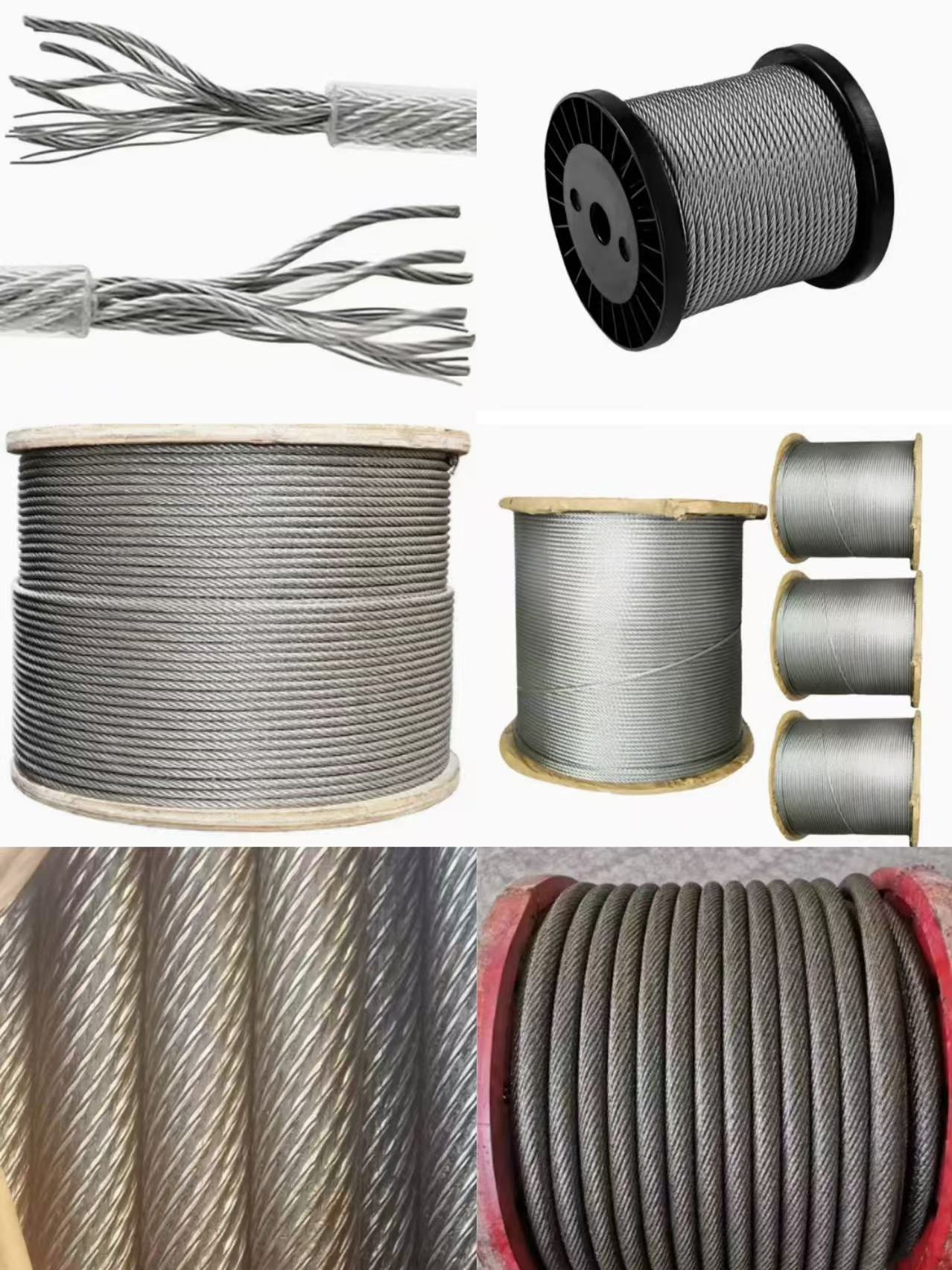

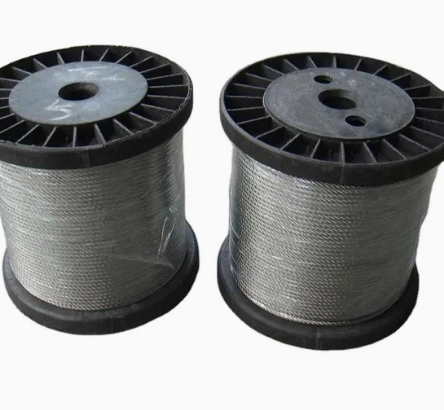

Our stainless steel wire rope cable can be supplied on a spool or cut to your specific request.
common wire rope cable type we supply:
1x7 1x19 1x37

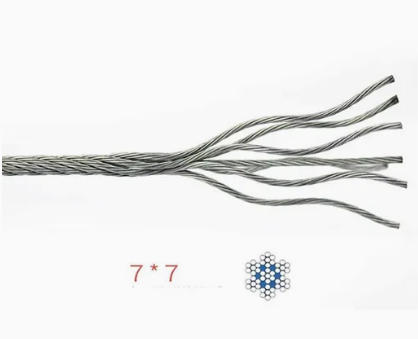

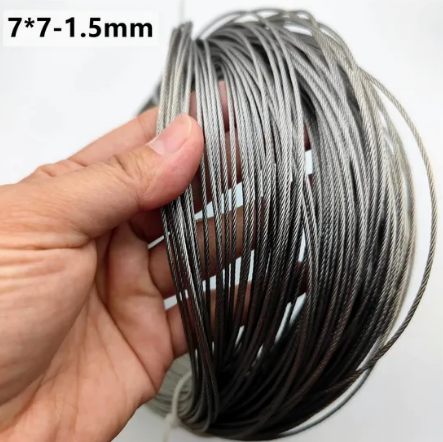

7x7 7x19 7x37
6x7+FC/PP 6x19+FC/PP/WSC/IWS/IWRC 6x19S
6X36WS+IWRC/FC 6X37+FC/IWRC
1) Loading port: Nantong,China/SHANGHAI CHINA
2) Delivery term: FOB, CFR, CIF
3) Delivery lead time: 30 days after received deposit.
4) Payment term:30% by T/T as deposit., balance will be paid by T/T,
5) Quality assurance: Mill Test Certificate is supplied with shipment, third Party Inspection is acceptable.
