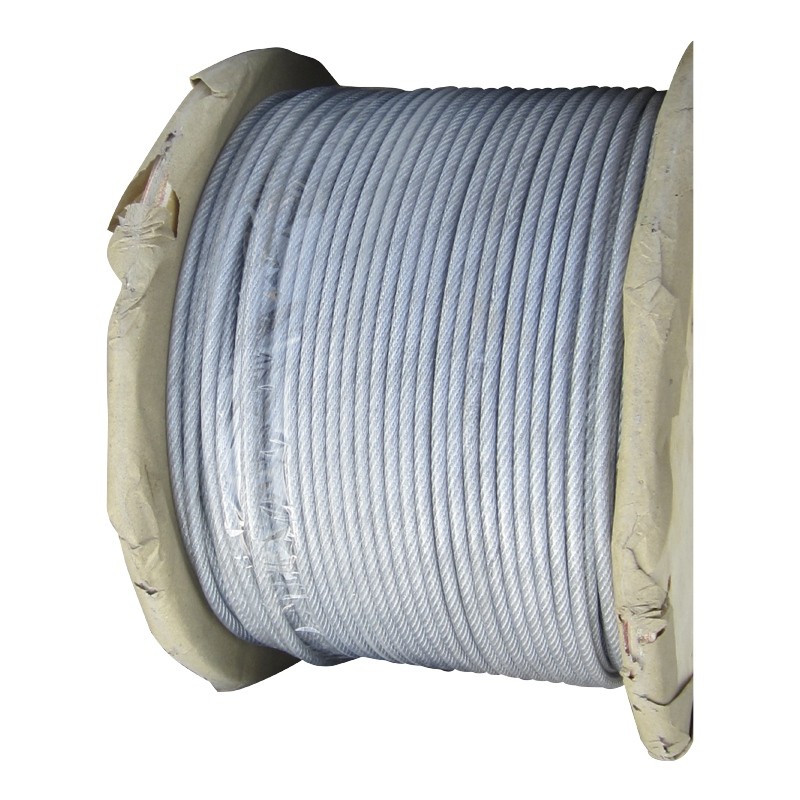

HOT DIPPED GALVANIZED STEEL WIRE ROPE 7X19

HOT DIPPED GALVANIZED STEEL WIRE ROPE 7X19

Raw Material :High carbon Steel
Surface:Galvanized

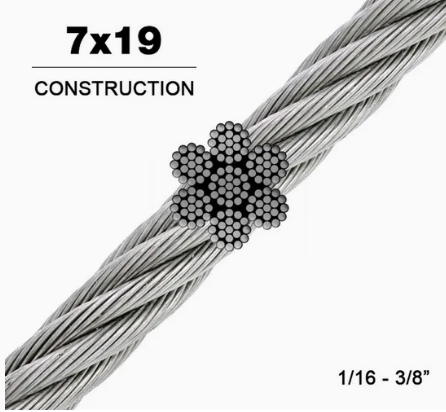

Construction :
Dia: 8 mm
Length：1000M

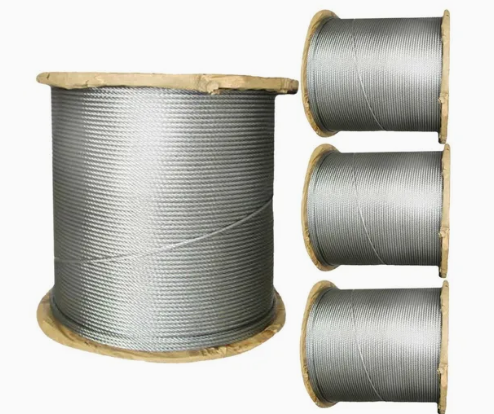

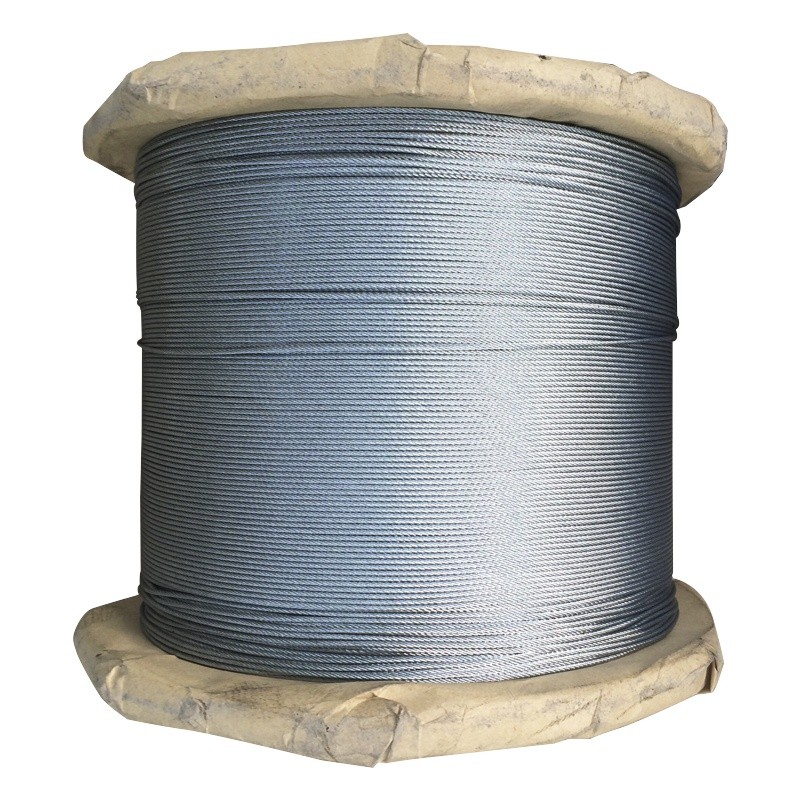

Package :Wooden reel
Origin :China

WIRE ROPE 6X19+FC,6X19+IWS, 6X19+IWRC, CONSTRUCTION:1+6+12

							Nominal Tensile Strength of Rope(MPa)
Nominal Diameter		Approx.Weight			1470		1570		1670		1770		1870
					Minimum Breaking Load of Rope
d	Allowed Tolerance	NF	SF	IWR/IWS	FC	IWR/IWS	FC	IWR/IWS	FC	IWR/IWS	FC	IWR/IWS	FC	IWR/IWS
mm	%	kg/100m			KN
3	+8	3.11	3.03	3.43	4.06	4.39	4.34	4.69	4.61	4.99	4.89	5.29	5.17	5.59
4 5	+7 0	5.54 8.65	5.39 8.43	6.10 9.53	7.22 11.30	7.81 12.20	7.71 12.00	8.34 13.00	8.20 12.80	8.87 13.90	8.69 13.60	9.40 14.70	9.19 14.40	9.93 15.50
6 7 8 9 10 11 12 13 14 16 18 20 22 24 26 28 30 32 34 36 38 40 42 44 46 48 50	+6 0	12.50 17.00 22.10 28.00 34.60 41.90 49.80 58.50 67.80 88.60 112.00 138.00 167.00 199.00 234.00 271.00 311.00 354.00 400.00 448.00 500.00 554.00 610.00 670.00 732.00 797.00 865.00	12.10 16.50 21.60 27.30 33.70 40.80 48.50 57.00 66.10 86.30 109.00 135.00 163.00 194.00 228.00 264.00 303.00 345.00 390.00 437.00 487.00 539.00 594.00 652.00 713.00 776.00 843.00	13.70 18.70 24.40 30.90 38.10 46.10 54.90 64.40 74.70 97.50 123.00 152.00 184.00 279.00 258.00 299.00 343.00 390.00 440.00 494.00 550.00 610.00 672.00 738.00 806.00 878.00 953.00	16.20 22.10 28.90 36.60 45.10 54.60 65.00 76.30 88.50 116.00 146.00 181.00 218.00 260.00 305.00 354.00 406.00 462.00 522.00 585.00 652.00 722.00 796.00 874.00 955.00 1040.00 1130.00	17.60 23.90 31.20 39.50 48.80 59.10 70.30 82.50 95.70 125.00 158.00 195.00 236.00 287.00 330.00 383.00 439.00 500.00 564.00 632.00 705.00 781.00 861.00 945.00 1030.00 1720.00 1220.00	17.40 23.60 30.80 39.00 48.20 58.30 69.40 81.50 94.50 123.00 156.00 193.00 233.00 278.00 326.00 378.00 434.00 494.00 557.00 625.00 696.00 771.00 850.00 933.00 1020.00 1110.00 1200.00	18.80 25.50 33.40 42.20 52.10 63.10 75.10 88.10 102.00 133.00 169.00 208.00 252.00 300.00 352.00 409.00 469.00 534.00 603.00 676.00 753.00 834.00 919.00 1010.00 1100.00 1200.00 1300.00	18.50 25.10 32.80 41.50 51.30 62.00 73.80 86.60 100.00 131.00 166.00 205.00 248.00 295.00 347.00 402.00 461.00 525.00 593.00 664.00 740.00 820.00 904.00 993.00 1080.00 1180.00 1280.00	20.00 27.20 35.50 44.90 55.40 67.10 79.80 93.70 109.00 142.00 180.00 222.00 268.00 319.00 375.00 435.00 499.00 568.00 641.00 719.00 801.00 887.00 978.00 1070.00 1170.00 1280.00 1390.00	19.60 26.60 34.80 44.00 54.30 65.80 78.20 91.80 107.00 139.00 176.00 217.00 263.00 313.00 367.00 426.00 489.00 556.00 628.00 704.00 785.00 869.00 959.00 1050.00 1150.00 1250.00 1360.00	21.20 28.80 37.60 47.60 58.80 71.10 84.60 99.30 115.00 150.00 190.00 235.00 284.00 338.00 397.00 461.00 529.00 602.00 679.00 762.00 849.00 940.00 1040.00 1140.00 1240.00 1350.00 1470.00	20.70 28.10 36.70 46.50 57.40 69.50 82.70 97.00 113.00 147.00 186.00 230.00 278.00 331.00 388.00 450.00 517.00 588.00 664.00 744.00 829.00 919.00 1010.00 1110.00 1210.00 1320.00 1440.00	22.40 30.40 39.70 50.30 62.10 75.10 89.40 105.00 122.00 159.00 201.00 248.00 300.00 358.00 420.00 487.00 559.00 636.00 718.00 805.00 896.00 993.00 1100.00 1200.00 1310.00 1430.00 1550.00
